TTR

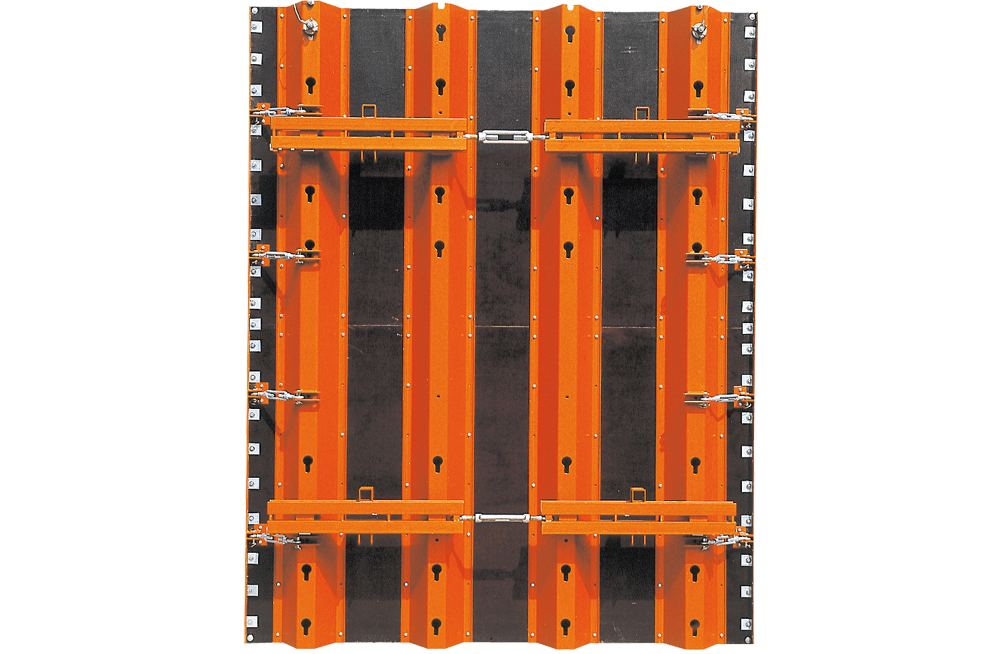

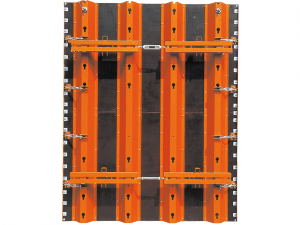

Circular Trapezoidal Girder Formwork with plywood
- Infinitely adjustable for diameters from 2 - 5 meters, and 5 meters to infinite
- Only 0.28 - 0.55 ties/m²
- Delivered ready to use to the construction site
- Perfectly round and with exact dimensions
- System solutions for haunch girders and uneven surfaces
- Compatible with all PASCHAL systems

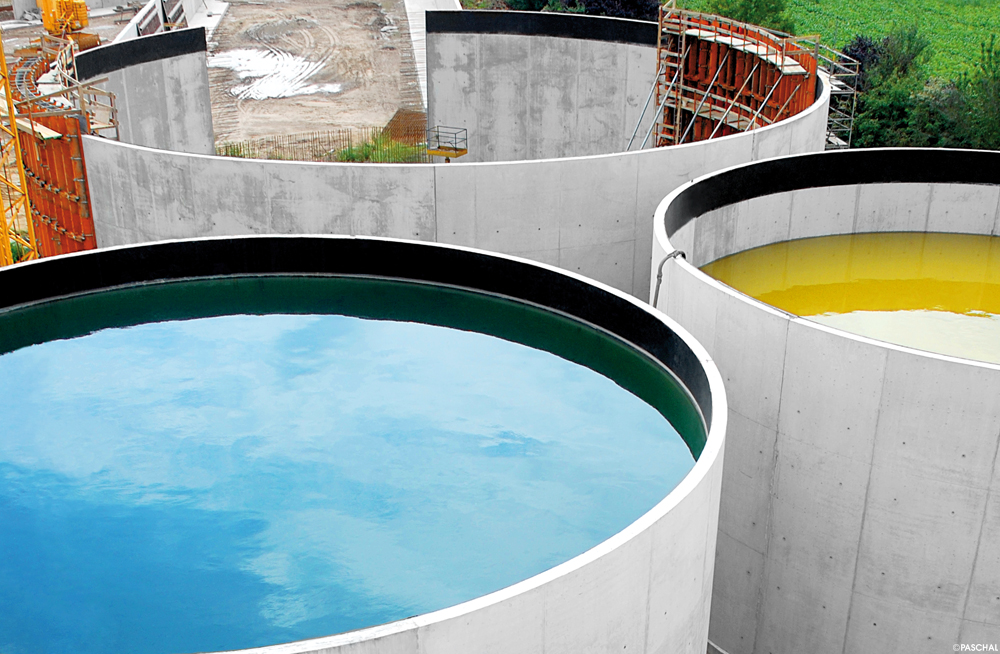

Circular Formwork with adjustable radii for waste water treatment plants, container construction, water parks, towers, stairwells, garage entrances, gardening and landscaping
| Technical Data | |
|---|---|
| Segment widths | 125,5 / 110,5; 62,5 / 55,5 cm (ø 2 - 5 m) |
| 240 / 230 (222); 120 /115; 60 / 57,5 cm (ø 5 - ∞) | |
| Segment heights | 300 / 150 / 75 / 37,5 cm |
| Frame depth | 40 cm (straight condition) |
| Plywood | 18 mm (ø 2 - 5 m); 21 mm (ø 5 - ∞) |
| Max. concrete pressure | 60 kN/m² according DIN 18218 |
| Tolerances of deflection | According DIN 18202, table 3, line 7 |
