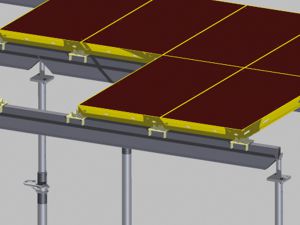

Lightweight formwork for concrete slabs

  • Light weight - userfriendly formwork for concrete slabs
  • Quick stripping - panels can be reused within a short period
  • Better working space for man movement for erection and stripping of panels
  • Fully compatible slab formwork with Modular Universal Formwork for beam casting

Possible applications:

  • Support of panels with props/shoring system
  • Panels shall be placed on the beams
  • Panels shall be placed between beams, drop head system fits in

Slab formwork e-deck

Slab formwork ideally suited for construction sites without crane availability and where aluminum is not an option. Fully compatible with our Modular/GE universal formwork, which allows problem-free and direct connections and transitions between wall and concrete slab or beams.

Technical Data
Panel dimensions  60x125 cm, 45x125 cm, 30x125 cm
  60x120 cm, 45x120 cm, 30x120 cm
  60x90 cm, 60x85 cm, 60x60 cm, 60x55 cm
  30x60 cm, 30x55 cm
Material  Steel frame, height 7,5 cm
Plywood  12 mm thick, 9-ply birch plywood
Beams  Length 235 cm (with drop head 250 cm)
  Length 165 cm (with drop head 180 cm)
Slab thickness  up to 30 cm
Max. single weight  ~20 kg
