Circular Trapezoidal Girder Formwork with clamp connection

Advantages of clamp connection:
  • Less connecting pieces
  • Fast segment connection
  • Clamps can be “stored” at the segment
  • Stepless segment positioning with height offset

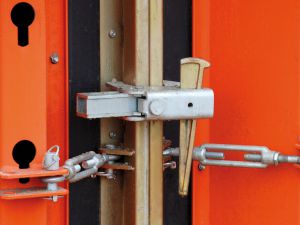

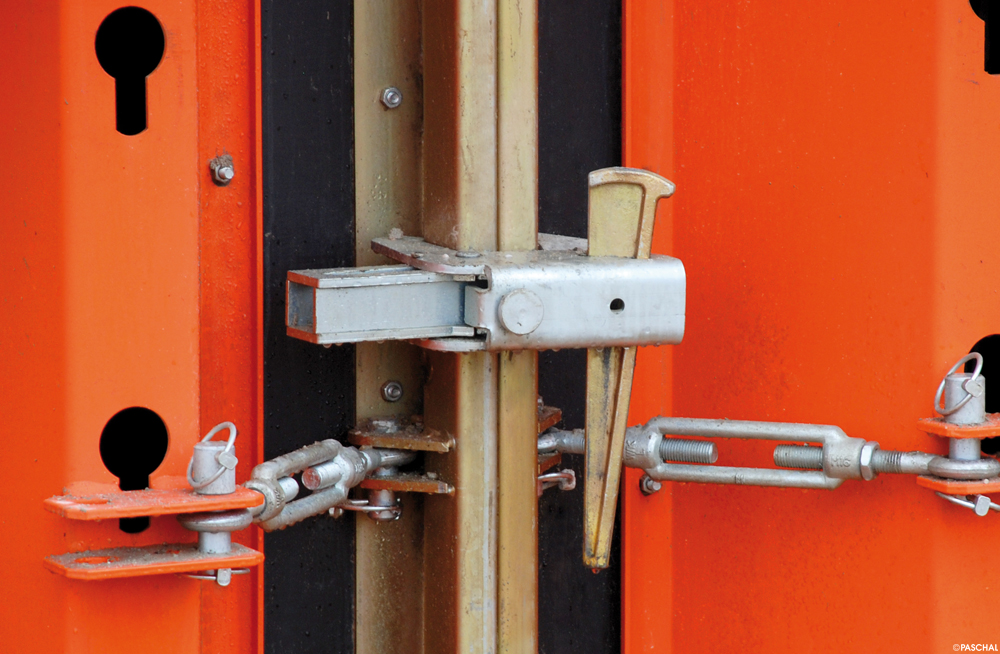

clamp connection

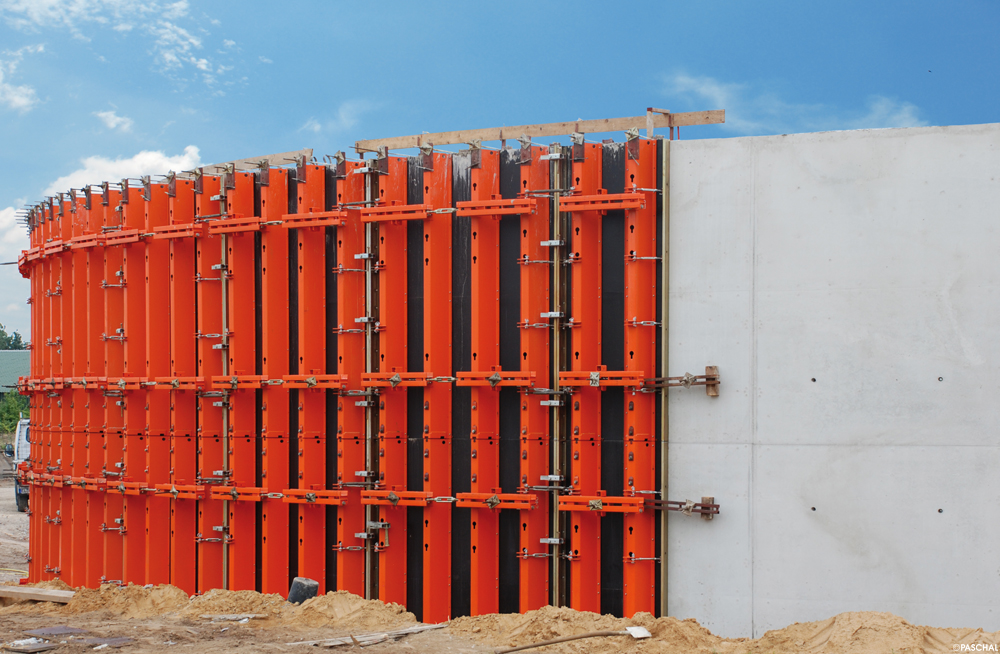

Circular Trapezoidal Girder Formwork

Circular Formwork with adjustable radii for waste water treatment plants, container construction, water parks, towers, stairwells, garage entrances, gardening and landscaping

Technical Data
Segment widths  240/230; 120/115; 60/57,5 cm (ø 5–∞)
Segment heights  300/150/75/37,5 cm
Frame depth  40 cm (straight condition)
Plywood  21mm (ø 5–∞)
Max. concrete pressure  60 kN/m² according DIN 18218
Tolerances of deflection  According DIN 18202, table 3, line 7
